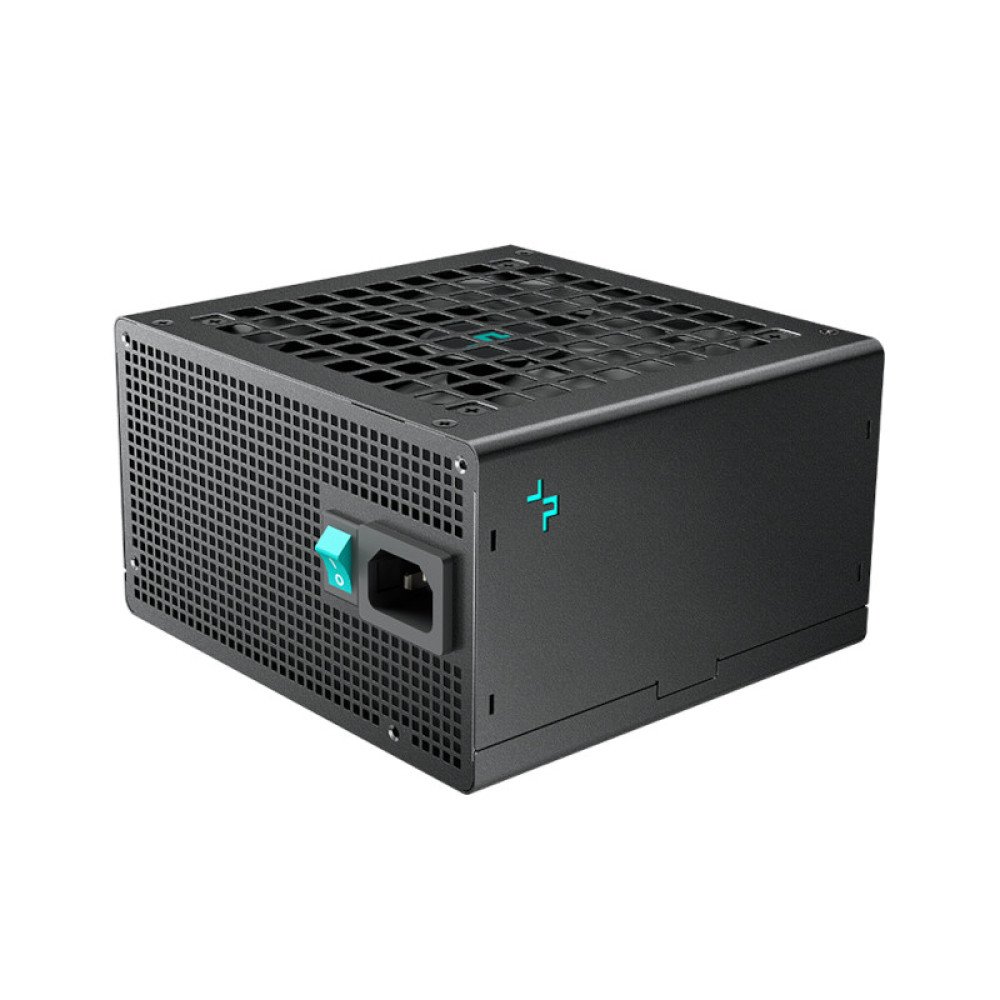

Deepcool PL650D 650 Watt 80 Plus Bronze SMPS

Key Features
ATX 3.0 Compliance: Equipped with a native PCIe 5.0 power connector rated up to 300 watts, the PL650D can handle power spikes by providing twice the total system power for 0.1 milliseconds.​
High-Quality Components: Utilizes premium electrolytic capacitors to maintain a hold-up time of ≥16 milliseconds under full load, ensuring stable performance during power fluctuations.​
Efficient Cooling: A 120mm hydro-bearing fan offers optimal cooling with minimal noise, enhancing the PSU’s longevity and reliability.​
Robust Protections: Incorporates multiple safety features, including Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), Under Voltage Protection (UVP), Surge and Inrush Protection (SIP), and No Load Operation (NLO).​

Specifications
Model: PL650D​
Part Number: R-PL650D-FC0B-IN-V2​
Dimensions (W x L x H): 150 × 140 × 86 mm​
Fan Size: 120mm​
Fan Bearing Type: Hydro Bearing​
Topology: Active PFC + DC to DC​
Capacitors: Chinese Electrolytic Capacitors​
Power Good Signal: 100-150ms​
Hold-Up Time: ≥16ms​
Efficiency: ≥85% under typical load (50%)
Operating Temperature Range: 0°C to 40°C​
MTBF (Mean Time Between Failures): 100,000 hours​
Warranty: 5 years​

Connectors
Main Power Connector: 24-pin (20+4) x 1​
CPU (EPS) Connector: 8-pin (4+4) x 2​
PCIe Connectors: 8-pin (6+2) x 3​
12VHPWR (16-pin) Connector: x 1​
SATA Connectors: x 6​
Peripheral (Molex) Connectors: 4-pin x 2​

The DeepCool PL650D is designed to provide stable and efficient power for mid-range desktop systems, making it a reliable choice for everyday computing task
