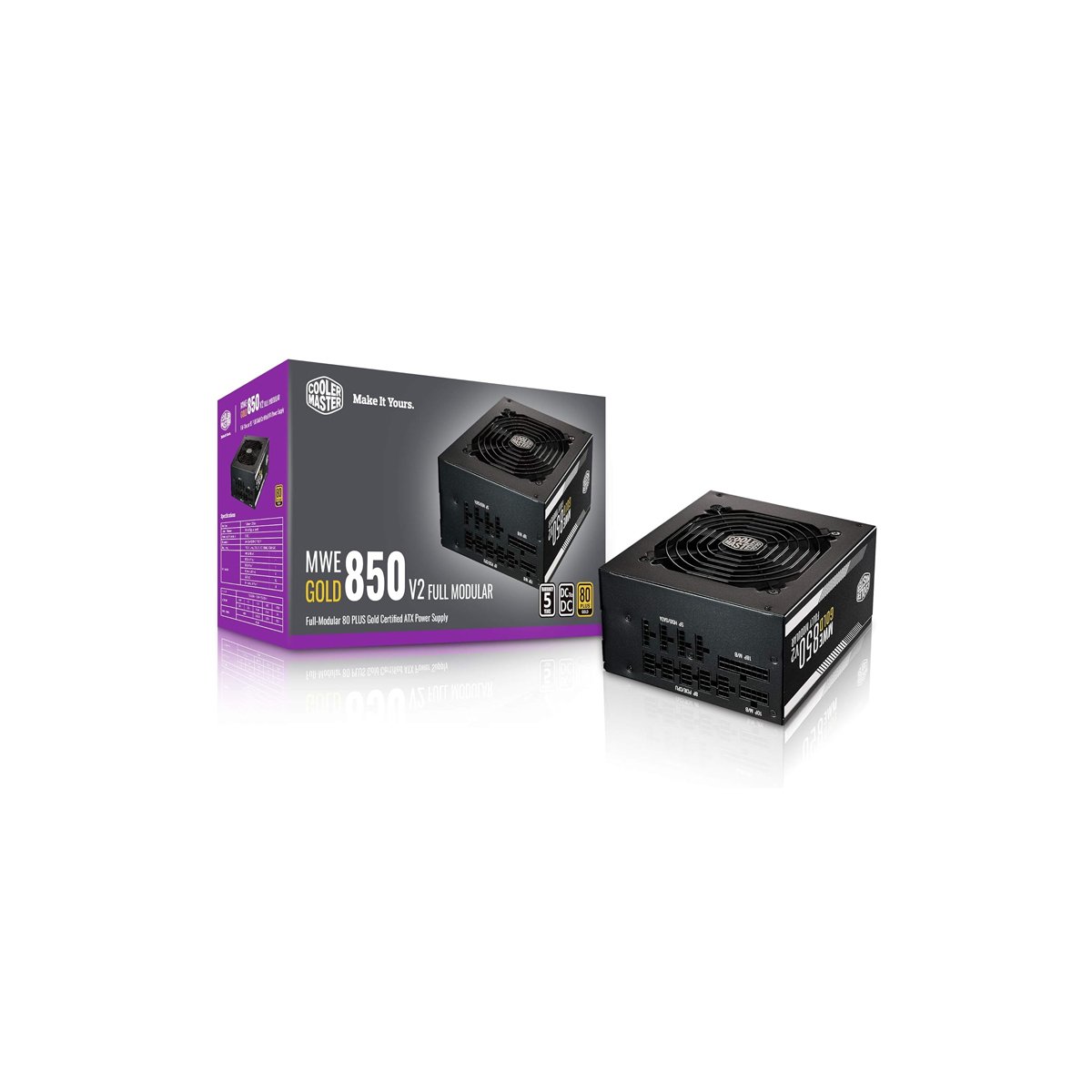

Cooler Master MWE 850 Gold V2 SMPS

General Information
Brand: Cooler Master
Model: MWE 850 Gold V2 Fully Modular
Series: MWE Gold V2
Form Factor: ATX 12V V2.52
Power Output: 850W
Efficiency Rating: 80 PLUS Gold (Up to 90% efficiency at typical loads)
PFC (Power Factor Correction): Active PFC
Input Voltage: 100 – 240V
Input Current: 12-6A
Input Frequency: 50-60Hz
Hold Up Time: >16ms at 100% full load and 230V
MTBF (Mean Time Between Failures): >100,000 hours
Operating Temperature: 0 – 50°C

Cooling System
Fan Type: 120mm Hydrodynamic Bearing (HDB) Fan
Fan Speed: 1500 RPM
Noise Level: ≤25 dBA at typical load
Cooling Design: Optimized airflow for silent operation

Modular Cables & Connectors
Modularity: Fully Modular (Allows users to connect only required cables for cleaner cable management and better airflow)
Motherboard Connector: 1 x 24-Pin ATX
CPU Connector: 1 x 8-Pin EPS12V
PCIe Connectors: 4 x 6+2-Pin PCIe (Supports multiple GPUs)
SATA Connectors: 12 x SATA
Peripheral (Molex) Connectors: 4 x 4-Pin Molex
Floppy Connector: 1 x FDD

Protection Features (Safety & Reliability)
OVP (Over Voltage Protection) – Prevents excess voltage from damaging components
OPP (Over Power Protection) – Shuts down the PSU if it exceeds its power limit
SCP (Short Circuit Protection) – Prevents damage from short circuits
UVP (Under Voltage Protection) – Prevents the PSU from operating at dangerously low voltages
OTP (Over Temperature Protection) – Protects against overheating

Physical Dimensions & Build Quality
Dimensions: 160mm (L) x 150mm (W) x 86mm (H)
Weight: Approx. 1.59 kg
Build Quality: 100% High-Quality Japanese Capacitors for improved durability and efficiency
Casing Color: Black
Fully Black Sleeved Cables: Yes (For a clean, aesthetic build)

Certifications & Compliance
80 PLUS Gold Certification – Ensures 90% efficiency at 50% load
ATX 12V V2.52 Compliant – Latest industry standard for improved efficiency and stability
ErP 2014 Lot 3 Ready – Meets European energy efficiency regulations
CE, FCC, TUV, CB, CCC, BSMI, EAC, RCM Certified – Global safety certifications

Warranty & Support
Manufacturer Warranty: 5 Years
Support: Cooler Master Customer Support & RMA Service

Key Features at a Glance
850W of Continuous Power – Handles high-performance gaming setups
80 PLUS Gold Efficiency – Up to 90% efficiency for lower power consumption & heat
Fully Modular Design – Improved cable management & airflow
Hydrodynamic Bearing Fan – Silent operation with enhanced cooling
100% Japanese Capacitors – Increased reliability & longevity
Multiple PCIe & EPS Connectors – Supports high-end GPUs & CPUs
Comprehensive Safety Features – OVP, OPP, SCP, UVP, OTP protections
